Application:
Deletes an entire QAM channel for the purpose of reinserting alternate programming (e.g. - Instructional, Security Camera, etc.).
Product Features:
- Utilizes High "Q" Components for Optimum Performance
- Preserves Adjacent QAM or Analog Channels
- Operating Bandwidth: 5 MHz to 1 GHz

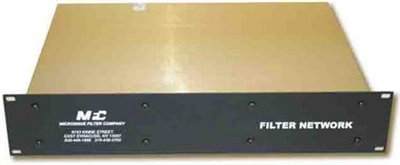

- Available in Plate Mount or Rack Mount Configurations
- Multi-Channel Configurations Available Upon Request
Specifications:
- Channel Availability: 2 - 135
- Channel Rejection: 40 dB (Min.)
- Adjacent QAM Channel Loss: 3 dB (Typ.); 4dB (Max.)
- Adjacent QAM Channel Delay Variation: 400 nS (Max.)
- 75 ohms / F-Female Connectors
