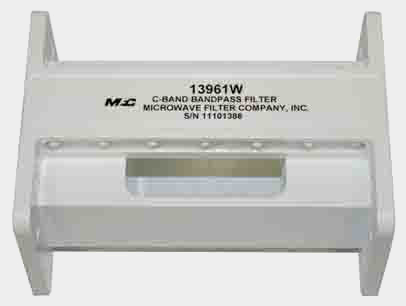

C-Band Receive

20541

Product Specifications

General Parameters:
Application:	WiMAX, Radar & Transmit band Reject Filters
Passband (MHz):	3820/4200
Passband Loss:	1.4 dB MAX from 3820-3825 MHz 1.2 dB MAX from 3825-4200 MHz
VSWR / Return Loss:	1.222:1 MAX / 20 dB MIN
Group Delay Variation:	1.45 nSEC
Dimensions (Inches):	168.4 mm x 98.6 mm x 69.9 mm
Rejection:	See PDF
Rejection 2:	30 dB Min from 3800 - 3805 MHz 60 dB Min from 3720 - 3800 MHz 25 dB Min @ 4230 MHz
Receive Band (MHz):	3820 - 4200
Insertion Loss:	1.2 dB, 1.4 dB
Return Loss:	20 dB MIN
Flanges:	CPR229G (Input), CPR229F (Output)
Finish:	Gloss White Lacquer
