Directional Couplers

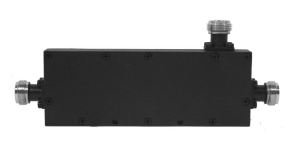

DC-6927-300-10NF

DC-6927-300-10NF
Datasheet

Product Specifications

General Parameters:
Coupling: 10 dB, ± 1.0 dB
Isolation: 28 dB Min
Insertion Loss (dB): 0.8 dB Max
Connector: N female
Freq Range (MHz): 698-2700
PIM: -155 dBc Min @ 2 x 43 dBm
VSWR (Max): 1.25:1
Power: 300 Watts
Impedance: 50 Ohms
Operating Temp. Range: -20°C to +70°C
Relative Humidity: 5% - 95%
Ingress Protection: IP65
