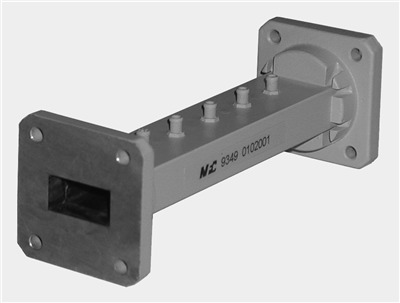

Ku-Band Receive

9349

9349
Datasheet

Product Specifications

General Parameters:
Passband: 11.7 - 12.2 GHz
Insertion Loss: 0.25 dB
VSWR (Max): 1.25:1
Rejection: 55 dB Typ 14.0-14.5 GHz, 60 dB Typ 10.55-10.68 GHz
Flanges: WR75 Cover
Weight: 0.2 Kg
Dimensions: 114mm x 38mm x 38mm
Finish: Gray Lacquer
Passband Power (CW): 1 Watt
Reject Band: 14.0 - 14.5 GHz, 10.55 - 10.68 GHz
