K/Ka-Band

19594

19594
Datasheet

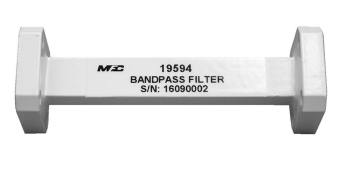

This bandpass filter isolates the designated passband from undesired transmissions operating below and above the band.

Product Specifications

General Parameters:
Application: (35.7 – 40.3) GHz Ka-band BPF
Passband: 35.7 – 40.3 GHz
Rejection: 60 dB Min @ 33.5 GHz, 60 dB Min @ 44.7 GHz
Insertion Loss: 1 dB Typ
Finish: White Lacquer
VSWR (Max): 1.43:1
Flanges: WR28 (Flat) Cover
Dimensions: 64mm x 19mm x 19mm
