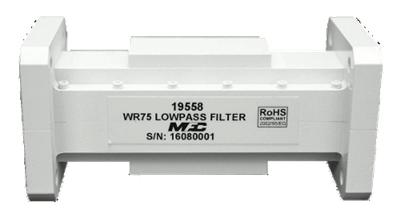

Ku-Band Receive

19558

19558
Datasheet

Product Specifications

General Parameters:
Passband: 10.7 - 11.7 GHz
Insertion Loss: 0.2 dB
VSWR (Max): 1.25:1
Rejection: 80 dB Typ / 70 dB Min from 12.75 - 14.50 GHz
Flanges: WR75 Cover
Dimensions: 82 mm x 38 mm x 38 mm
Finish: White Lacquer
