ISM (900 MHz) Filters

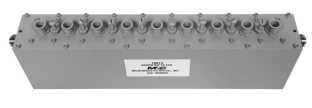

19513

19513
Datasheet

This highly selective filter isolates the 900 MHz band from other services operating above and below the 900 MHz band.

Product Specifications

General Parameters:
Application: Bandpass
Passband: 902 - 927 MHz
Passband Loss: 3.0 dB Max
VSWR (Max): 1.5:1
Passband Power (CW): 10 Watts Max
Rejection: 25 dB Typ @ 894 MHz, 30 dB Min from 929 - 932 MHz
Impedance: 50 ohms
Connectors: N-Female
Dimensions: 319 mm x 51 mm x 86 mm
