ISM (900 MHz) Filters

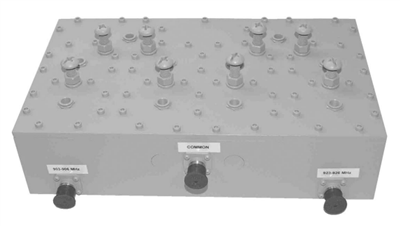

19427

19427
Datasheet

This diplexer provides excellent isolation between the transmit and receive bands with minimal signal degradation.

Product Specifications

General Parameters:
Application: Diplexer
Passband: 903-906 MHz, 923-926 MHz
Passband Loss: 2.0 dB Max
VSWR (Max): 1.2:1
Passband Power (CW): 10 Watts Max
Impedance: 50 ohms
Connectors: N-Female
Operating Temp: -10°C to +55°C
Mutual Isolation: 70 dB Approx
