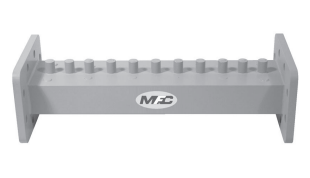

C-Band Receive

19296

Product Specifications

General Parameters:
Passband (MHz):	5150/5216
Passband Loss:	0.1 dB MAX
VSWR / Return Loss:	1.2:1 TYP / 20.8 TYP
Group Delay Variation:	1 nS Max
Dimensions (Inches):	215.9 mm x 88.9 mm x 63.5 mm
Rejection:	See PDF
Rejection 2:	35 dB Approx @ 5600 MHz
Receive Band (MHz):	5150 - 5216
Insertion Loss:	0.1 dB MAX
Return Loss:	20.8 dB TYP
Flanges:	CPR-187 (Flat)
Finish:	Gloss White Lacquer
Operating Temperature Range:	-40°C to +60°C
