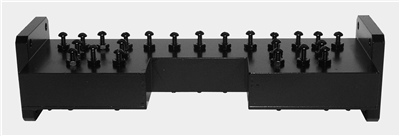

X-Band Receive

19170

19170
Datasheet

Product Specifications

General Parameters:
Passband: 7.25 - 7.75 GHz
Passband Loss: 0.3 dB
Passband Return Loss: 20 dB
Rejection: 90 dB Min from 7.9 - 8.4 GHz
Flanges: WR112 Cover
Weight: 0.34 Kg
Dimensions: 210mm x 48mm x 68mm
Finish: Flat Black Lacquer
Rejection: -10°C to +65°C
