K/Ka-Band

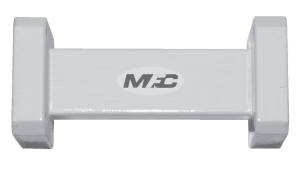

19093

Product Specifications

General Parameters:
Application:	(21.4 - 21.7) GHz K-band Satcom Receive Band BPF
Passband:	21.4 - 21.7 GHz
Insertion Loss:	0.3 dB Max
Finish:	White Lacquer
VSWR (Max):	1.3:1
Flanges:	WR42 Grooved (Input), WR42 Cover (Output)
Dimensions:	51 mm x 22 mm x 22 mm
Stopband:	DC -18.4 GHz
Stopband Attenuation:	60 dB Min
