C-Band Receive

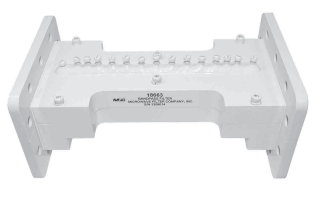

18663

18663
Datasheet

Product Specifications

General Parameters:
Passband (MHz): 4500/4800
Passband Loss: 0.2 dB MAX
VSWR / Return Loss: 1.222:1 MAX / 20 dB MIN
Dimensions (Inches): 161.5 mm x 98.6 mm x 69.9 mm
Rejection: See PDF
Rejection 2: 80 dB Min from 1000 - 3900 MHz, 20 dB Min from 3900 - 4300 MHz
Receive Band (MHz): 4500 - 4800
Insertion Loss: 0.2 dB MAX
Return Loss: 20 dB MIN
Flanges: CPR229G
Finish: Gloss White Lacquer
