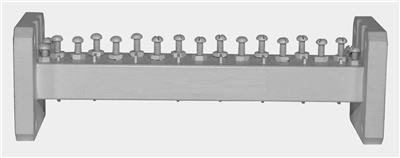

Ku-Band Receive

18381

Product Specifications

General Parameters:
Passband:	10.95 - 12.75 GHz
Insertion Loss:	0.1 dB
VSWR (Max):	1.15:1
Rejection:	75 dB Min from DC to 9.5 GHz, 55 dB Min from 9.5 - 10 GHz, 25 dB Min from 10 - 10.5 GHz
Flanges:	WR75 Cover (Input & Output)
Dimensions:	120 mm x 38 mm x 38 mm
Finish:	Gloss White Lacquer
Group Delay Variation:	0.8 nS
