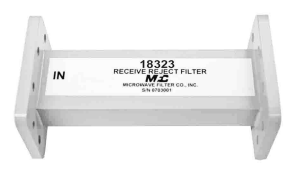

C-Band Transmit

18323

18323
Datasheet

Product Specifications

General Parameters:
Passband: 6.725 - 7.025 GHz
Insertion Loss: 0.10 dB
VSWR (Max): 1.22:1
Reject Band: 4.5 - 4.8 GHz
Rejection: 80 dB Typ
Flanges: CPR137/CPR137G
Dimensions: 127mm x 68mm x 49mm
Finish: White Lacquer
