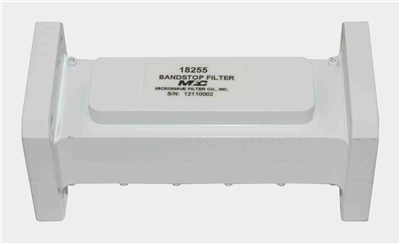

Ku-Band Receive

18255-G/F

18255-G/F
Datasheet

Product Specifications

General Parameters:
Passband: 10.70 - 12.75 GHz
Insertion Loss: 0.1 dB
VSWR (Max): 1.20:1
Rejection: 100 dB Typ 90 dB Min
Flanges: WR75 Grooved, WR75 Flat
Dimensions: 82mm x 38mm x 38mm
Finish: Gloss White Lacquer
Reject Band: 13.75 - 14.5 GHz
