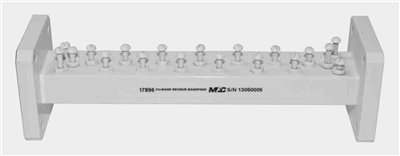

Ku-Band Receive

17896

Product Specifications

General Parameters:
Passband:	10.95 - 12.75 GHz
Insertion Loss:	0.5 dB
VSWR (Max):	1.25:1
Rejection:	50 dB Min except, 70 dB Typ from DC - 9 GHz
Flanges:	WR75 Grooved (Input), WR75 Cover (Output)
Weight:	0.2 Kg
Dimensions:	132 mm x 38 mm x 38 mm
Finish:	Gloss White Lacquer
Reject Band:	DC - 9 GHz 9 - 10 GHz 13.75 - 14.6 GHz
