MF, HF & VHF Transmit Filters (720 kHz - 120 MHz)

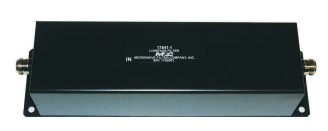

17841

Product Specifications

General Parameters:
Application:	Transmit - 250 W 723 kHz - 21.2 MHz (Freq. Cut-off Option)
Passband:	0 - 21.2 MHz
Insertion Loss:	0.7 dB Max
Rejection:	27.56 - 106 MHz
VSWR (Max):	1.36:1
Power:	250 Watts
Weight:	4.5 lbs. Approx
Connectors:	N-Female
Finish:	Flat Black
