Ku-Band Receive

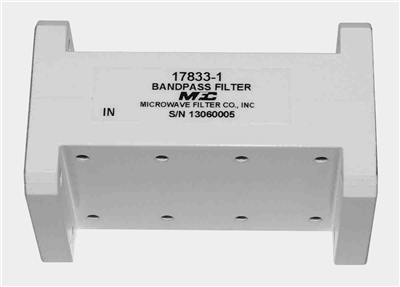

17833-1

17833-1
Datasheet

Product Specifications

General Parameters:
Passband: 10.70 - 11.75 GHz
Insertion Loss: 0.15 dB
VSWR (Max): 1.20:1
Rejection: 85 dB Min
Flanges: WR75 Cover & Grooved
Weight: 0.12 kg
Dimensions: 66mm x 38mm x 38mm
Finish: Gloss White Lacquer
Reject Band: 12.75 - 13.25 GHz
