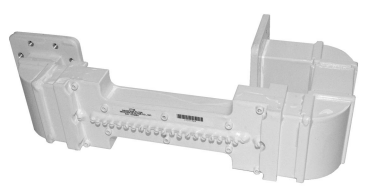

C-Band Receive

17748

17748
Datasheet

Product Specifications

General Parameters:
Passband (MHz): 3400/4200
Passband Loss: 0.45 dB Typ 0.55 dB Max
VSWR / Return Loss: 1.33:1 MAX / 17 dB MIN
Rejection: See PDF
Rejection 2: 50 dB Min from 2000 - 3250 MHz
Receive Band (MHz): 3400 - 4200
Insertion Loss: 0.45 dB
Return Loss: 17 dB MIN
Flanges: CPR229G
Finish: Gloss White Lacquer
