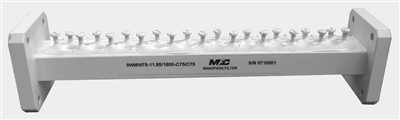

Ku-Band Receive

16709

16709
Datasheet

Product Specifications

General Parameters:
Passband: 10.95 - 12.75 GHz
Insertion Loss: 0.5 dB
VSWR (Max): 1.2:1
Rejection: 50 dB Min from 14.0-14.5 GHz, 50 dB Min from 10.40-10.60 GHz
Flanges: WR75 Cover
Weight: 0.2 Kg
Dimensions: 165mm x 38mm x 38mm
Finish: Gray Lacquer
Pressurization: Sealed to 5 PSIG
