ISM (2.4 GHz) Filters

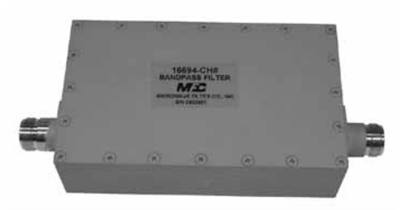

16694

16694
Datasheet

Weatherized version of Model 16693 Single Channel (Ultra-Selective) Bandpass Filter

Product Specifications

General Parameters:
Application: Single Channel (Ultra-Selective) Bandpass Filter
Channel Option: 1, 3, 6, 9, 11
Bandwidth: 22 MHz
Insertion Loss: 3 dB Typ
Channel Return Loss (Min): 15 dB
Rejection: ±15 MHz from channel center
Impedance: 50 ohms
Power Rating: 50 Watts (CW)
Connectors: N-Female
Operating Temperature Range: -40°C to +85°C
Dimensions: 4.3”x2.2”x0.8”
