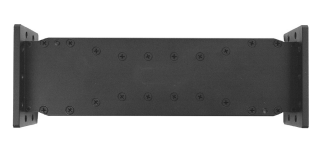

C-Band Receive

16600

16600
Datasheet

Product Specifications

General Parameters:
Passband (MHz): 3400/4200
Passband Loss: 0.1 dB TYP
Dimensions (Inches): 279.4 mm x 98.6 mm x 69.9 mm
Rejection: See PDF
Rejection 2: 60 dB MIN from 5850 - 6425 MHz
Rejection 3: 5 PSI
Weight Lbs: 1.7 Kg
Receive Band (MHz): 3400 - 4200
Insertion Loss: 0.1 dB
Flanges: CPR229G
Finish: Flat Black Lacquer
Reject Band: 5.825 - 8.400 GHz
