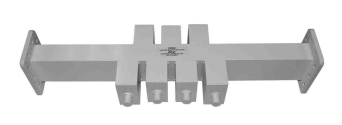

C-Band Receive

16506

16506
Datasheet

Product Specifications

General Parameters:
Passband (MHz): 3400/4200
Passband Loss: 0.05 dB TYP from 3400 - 4100 MHz 0.25 dB TYP from 4100 - 4200 MHz
VSWR / Return Loss: 1.21:1 MAX / 20.4 dB MIN
Dimensions (Inches): 457.2 mm x 98.6 mm x 137 mm
Rejection: See PDF
Rejection 2: 25 dB MIN from 4240 - 4350 MHz
Rejection 3: Tested to 1.0 PSIG
Weight Lbs: 2.39 Kg
Receive Band (MHz): 3400 - 4200
Insertion Loss: 0.05 dB, 0.25 dB
Return Loss: 20.4 dB MIN
Flanges: CPR229F
Finish: Gloss White Lacquer
Reject Band: 4.24 - 4.35 GHz
