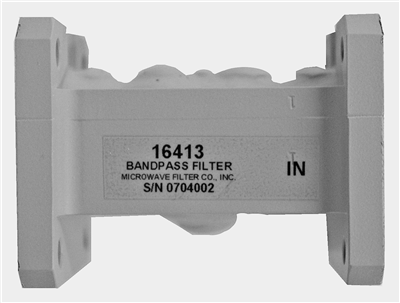

Ku-Band Transmit

16413

Product Specifications

General Parameters:
Passband:	13.75-14.50 GHz
Insertion Loss:	0.2 dB
VSWR (Max):	1.2:1
Rejection:	30 dB Min 20 dB Min @ 13.05 GHz
Flanges:	WR75 Cover (Input), WR75 Grooved (Output)
Weight:	0.054 Kg
Dimensions:	51mm x 38mm x 38mm
Finish:	Chem Film Per MIL-C-5541C Class1A
Reject Band:	10.70 - 12.75 GHz
