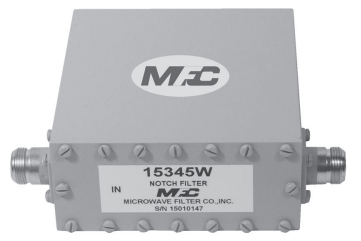

15345W(M/F)

This notch filter is designed specifically to eliminate interference caused by high-powered paging systems operating at 930 MHz. It is compact and sturdy and operates over a wide temperature range, making it ideal for installation in virtually any indoor or outdoor enclosed environment.

Product Specifications

General Parameters:
Application: Notch
Passband: 902.5-927.5 MHz (1 Watt Max)
Passband Loss: 1.0 dB Typ, 3 dB Typ at 927.5 MHz
Notch Frequency: 930 MHz
Notch Depth: 35 dB Min
Impedance: 50 ohms
Connectors: N-Male, N-Female
Operating Temp: -20°C to +50° C
