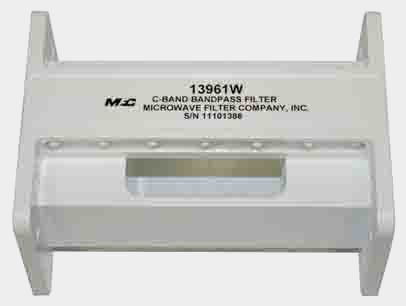

C-Band Receive

13961WE-I-3625/4200

Product Specifications

General Parameters:
Application:	WiMAX, Radar & Transmit band Reject Filters
Passband (MHz):	3625/4200
Passband Loss:	0.4 dB APPROX @ Fo: 0.7 dB TYP @ Passband Edges
VSWR / Return Loss:	1.5:1 TYP / 14 dB TYP
Group Delay Variation:	8 nS MAX
Dimensions (Inches):	139.4 mm x 98.6 mm x 69.9 mm
Rejection:	See PDF
Rejection 2:	45 dB @ 3575 / 4275 MHz, 55 dB @ 3475 / 4375 MHz, 70 dB @ 3425 / 4425 MHz
Weight Lbs:	0.51 kg
Receive Band (MHz):	3625 - 4200
Insertion Loss:	0.4 dB (WE), 0.5 dB (W)
Passband Edge Roll-off:	0.3 dB (WE), 0.5 dB (W)
Return Loss:	14 dB TYP
Flanges:	CPR229G (IN) / CPR229F / OUT
Finish:	WHITE GLOSS PAINT
