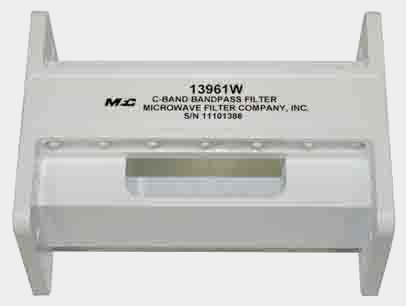

C-Band Receive

13961W-I-3578/4178

Product Specifications

General Parameters:
Application:	WiMAX, Radar & Transmit band Reject Filters
Passband (MHz):	3578/4178
Passband Loss:	0.5 dB APPROX @ Fo 0.5 dB APPROX ROLL OFF @ PASSBAND EDGES
VSWR / Return Loss:	1.44:1 TYP / 14.9 dB TYP
Group Delay Variation:	8 nS MAX
Dimensions (Inches):	139.4 mm x 98.6 mm x 69.9 mm
Rejection:	See PDF
Rejection 2:	45 dB @ 3528 / 4228 MHz, 55 dB @ 3428 / 4328 MHz, 70 dB @ 3378 / 4378 MHz
Weight Lbs:	0.51 kg
Receive Band (MHz):	3578 - 4178
Insertion Loss:	0.3 dB (WE), 0.5 dB (W)
Passband Edge Roll-off:	0.3 dB (WE), 0.5 dB (W)
Return Loss:	14.9 dB
Flanges:	CPR229G (IN) / CPR229F / OUT
Finish:	WHITE GLOSS PAINT
