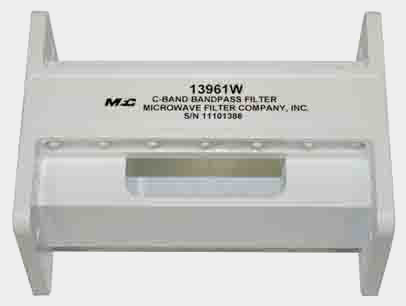

C-Band Receive

13961W

Product Specifications

General Parameters:
Application:	WiMAX, Radar & Transmit band Reject Filters
Passband (MHz):	3700/4200
Passband Loss:	0.5 dB APPROX @ Fo 0.5 dB APPROX ROLL OFF @ PASSBAND EDGES
VSWR / Return Loss:	1.44:1 TYP / 14.9 dB TYP
Group Delay Variation:	7 nS MAX
Dimensions (Inches):	139.4 mm x 98.6 mm x 69.9 mm
Rejection:	See PDF
Rejection 2:	45 dB @ 3650 / 4250 MHz, 60 dB @ 3550 / 4350 MHz, 70 dB @ 3500 / 4400 MHz
Weight Lbs:	0.51 kg
Receive Band (MHz):	3700 -4200
Insertion Loss:	0.3 dB (WE), 0.5 dB (W)
Passband Edge Roll-off:	0.3 dB (WE), 0.5 dB (W)
Return Loss:	14.9 dB TYP
Flanges:	CPR229G (IN) / CPR229F / OUT
Finish:	Gloss White Lacquer
