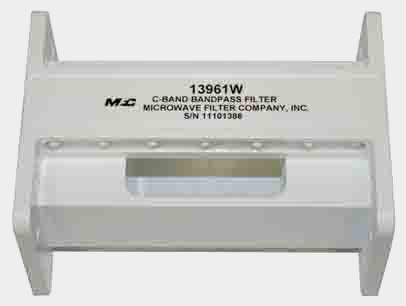

C-Band Receive

13961-3400/4200

Product Specifications

General Parameters:
Application:	WiMAX, Radar & Transmit band Reject Filters
Passband (MHz):	3400/4200
Passband Loss:	0.5 dB TYP
VSWR / Return Loss:	1.5:1 TYP / 14 dB TYP
Dimensions (Inches):	112.8 mm x 98.6 mm x 69.85 mm
Rejection:	See PDF
Rejection 2:	25 dB MIN @ 3300 / 4300 MHz, 50 dB @ 4400 MHz, 60 dB @ 4500 MHz
Receive Band (MHz):	3400 - 4200
Insertion Loss:	0.5 dB TYP
Flanges:	CPR229G (IN) / CPR229F / OUT
Finish:	WHITE GLOSS PAINT
